Dashboard (Main screen)
Power Consumption
Indicates the amount of electricity consumed by the miner. Helps evaluate energy efficiency and electricity costs.
Widget Description

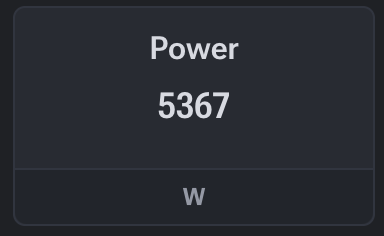

For APW12 power supplies installed on the S19 series with air cooling, the widget displays the following information:
- 5343 (Estimated) – estimated power consumption for the selected autotune profile based on an empirical formula.
Actual consumption may differ significantly from these values when measured using a Smart PDU or outlet, as it depends on environmental conditions and wear of the ASIC chips in the specific miner. - 0 (Zero) – when no autotune profile is selected.

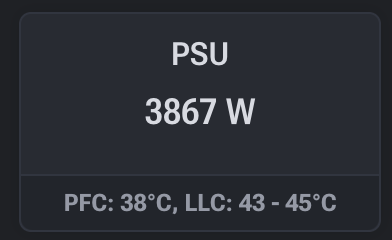

For next-generation power supplies, APW171215c and others, installed on S21 series miners, as well as S19 series miners with liquid cooling (Hydro), the widget displays:
- Miner power consumption read from the PSU interface bus.
- Temperature of the main power components of the PSU.
