Mining

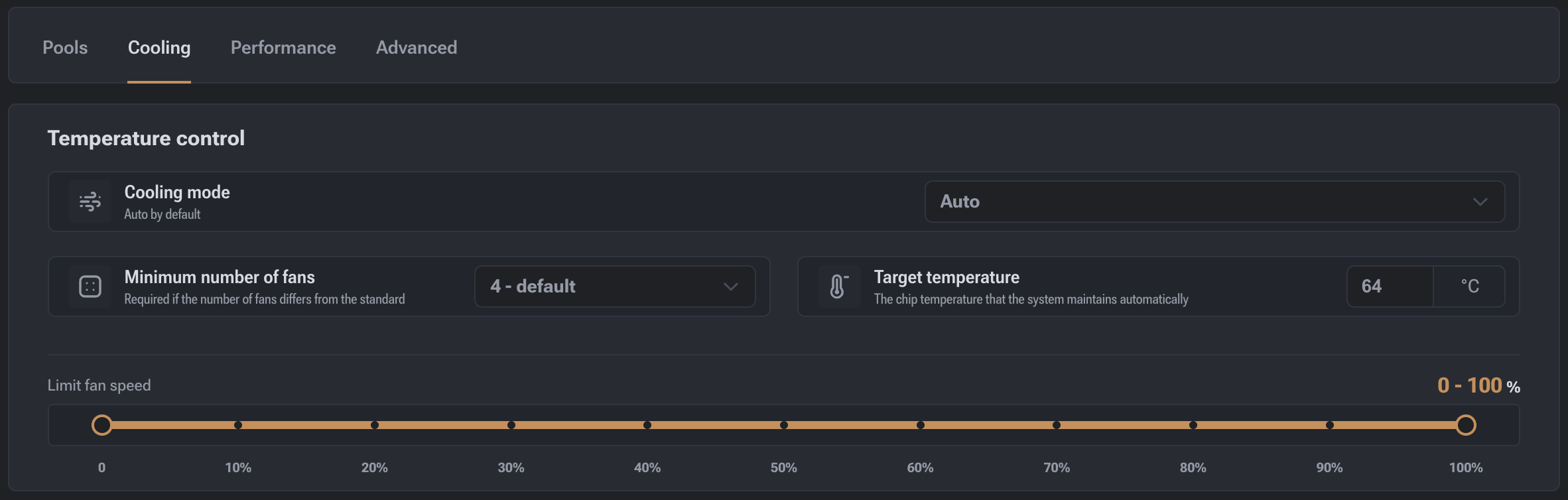

Cooling
Central control unit for temperature management to prevent overheating and optimize noise levels.
- Fan mode:
- Auto: the firmware automatically adjusts fan speeds based on chip temperature. This is the safest mode.
- Manual: fan speed is set to a fixed PWM level (e.g., 40%, 70%, 100%) regardless of temperature.
- Immersion: fans are completely turned off for liquid operation; control is based on liquid temperature (inlet-outlet).
- Target temperature: set the chip temperature (recommended value — 65°C) that the system will maintain by adjusting fan speeds.
- Minimum number of fans: specify the number of fans that must be operational (default — 4).
- Fan speed limit: slider to limit the fan power range in percent (from 10% to 100%).
Pools
This screen is used to configure mining pools and manage their usage order. Here you set the main and backup pools, worker parameters, and authorization.
Performance
This section is used for managing overclocking, frequencies, and voltage. It allows balancing hashrate, power consumption, and stability.
