Working with web config

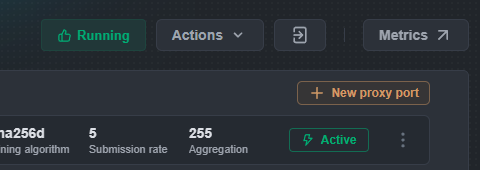

• In the “Proxy ports” section, click + New proxy port

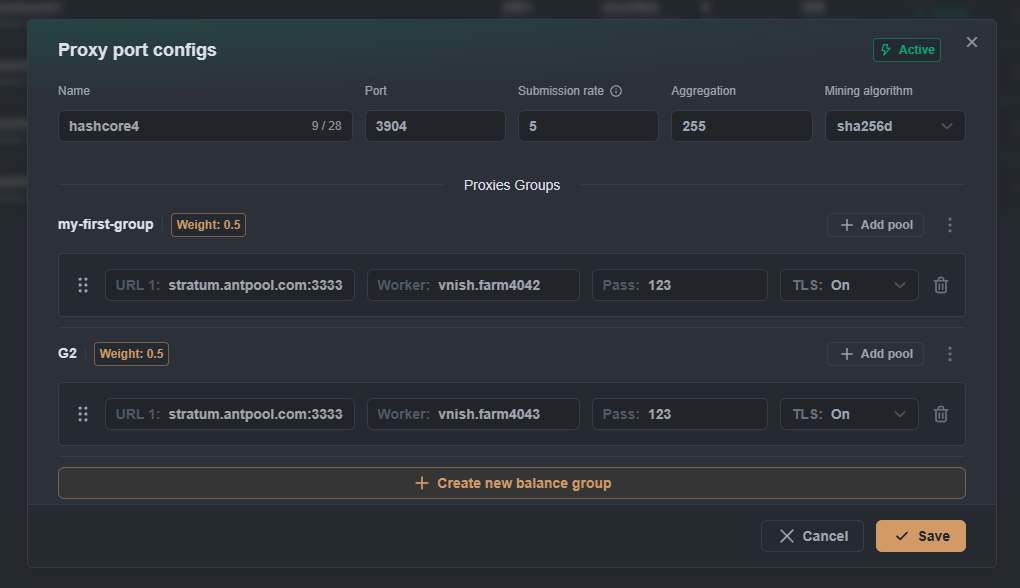

• A window “Proxy port configs” will open

At the top of the window, fill in:

• Proxy name: Port name (used for identification in Grafana)
• Proxy port: The port number miners will connect to (e.g., 3000–4000)
• Submission rate: Share submission frequency (default 5 = 1 share every 5 seconds)
• Aggregation: Number of miners per pool connection (recommended 20–255)
• Mining algorithm: Choose from the dropdown list:
  • sha256d for Bitcoin
  • scrypt for Litecoin

HashCore Proxy supports an advanced hashrate balancing system between pool groups.

Working with existing groups

By default, a Default balance group is created with a weight of 1.

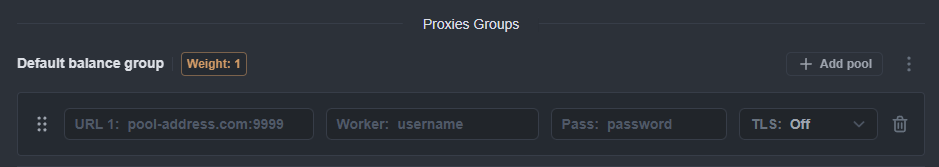

Adding pools to a group

1. Click + Add pool in the target group.
2. Fill in the pool parameters:
   • URL X: Stratum server address (for example, stratum.antpool.com:3333)
   • Worker: Your account + worker name (acc.worker)
   • Pass: Password (not hidden)
   • TLS: On/Off toggle for encrypted connection

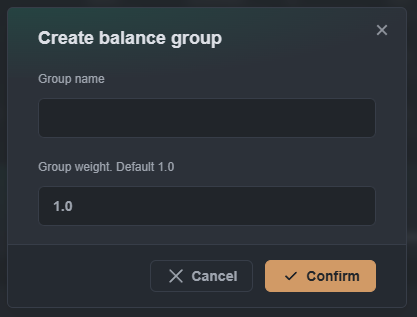

Creating additional groups

1. Click “+ Create new balance group”
2. In the “New / Edit group” modal, specify:
   • Balance group name: Group name
   • Group weight: Group weight (default value is 1.0)
3. Click “Confirm”

Weight distribution logic: If you have two groups with weights 0.5 and 1.0, the hashrate will be distributed in a 1:2 ratio respectively.

Pools actions:

• Drag & Drop: Use the ⋮⋮ icon to reorder pools
• Delete: Click the trash icon to remove a pool
• Validation: The system automatically checks the validity of the URL

Group Requirements:

• Each group must contain at least 1 pool
• If this condition is not met, a warning appears: “Pool group must have at least one pool”

1. Review all settings
2. Click “Save config” (orange button)

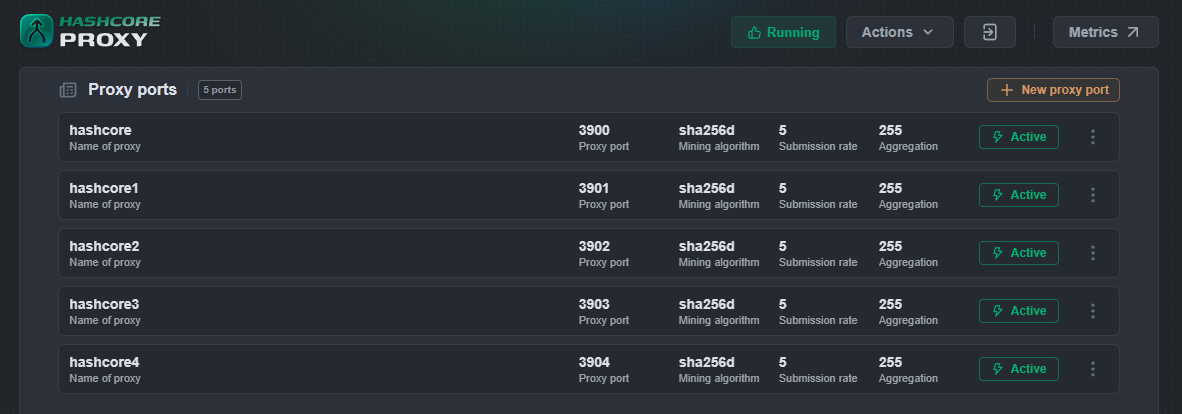

Managing Existing Ports

Accessing Port Settings:

1. In the ports list, click the three dots (⋯) on the right side of the desired port
2. From the context menu, select the required action:

Available Actions:

• Enable/Disable: Toggle to activate or deactivate the port
• Copy stratum URL: Copy the connection URL for miners
• Edit: Open the port configuration window
• Delete: Remove the proxy port

Quick Management

• Status: Each port’s status is displayed in the table (“Active” shown in green)
• Monitoring: All key parameters are visible in the main list
• Instant changes: Any edits are applied immediately without restart

Manual Configuration (Alternative method)

You can also modify the HashCore Proxy settings manually in the file config/stratum-proxy.yaml:

log_level: info
api_port: 5010
log_dir: ./configs/log
telemetry: null
upstream_tcp_settings:
  keep_alive:
    idle_time:
      secs: 15
      nanos: 0
    interval:
      secs: 5
      nanos: 0
    retries: 3
  user_timeout: 29s
ports:
- bind_port: 3900              # Порт для майнинга
  name: Bitcap                 # Имя для Grafana
  active: true
  submission_rate: 0.2         # Количество шар в сек (0.2 = 1 шара каждые 5 секунд)
  aggregation: 255             # Количество майнеров на соединение с пулом (1-256)
  mining_algorithm: sha256d    # Алгоритм майнинга (sha256d / scrypt)
  pool_groups:
  - group: Example group
    weight: 1.0
    pools:
    - url: btc.bitcap.io:3333  # URL Stratum
      user: vnish.farm3056     # Логин пула
      pass: '123'              # Пароль
      tls: true                # Включить TLS соединение с пулами
    - url: btc.bitcap.io:4444  # Резервный пул
      user: vnish.farm4545     # Логин пула
      pass: '123'
      tls: true
- bind_port: 3905              # Дополнительный порт для Litecoin
  name: Bitcap2
  active: true
  submission_rate: 0.2
  aggregation: 255
  mining_algorithm: sha256d
  pool_groups:
  - group: Example group
    weight: 1.0
    pools:
    - url: btc.bitcap.io:3333
      user: vnish.farm5555
      pass: '111'
      tls: true
